ML3K5T32V3 Multilift

The ML3K5T32V3 Multilift will work with any machine with lifting capabilities using the Rigmax assembly. The concrete slab lifting device has a 3,000 pound capacity with specially engineered pads that pivot in all directions to accommodate a sloped surface. The ML3K can grip from 5 to 32 inches when using it to grip on the outside of a block. It can also grip from 18 to 41 inches when the legs are reversed to push from the inside out.

This concrete slab lifting device attaches with Kenco’s recommended Rigmax to any lifting capable machine.

See the chart below for specifications.

Uses an Small Actuator and 6″ round pads.

multi lifting tool for below the hook lifting of retaining wall block and capstone

ML8K10T48V1 Multilift

The ML8K10T48V1 Multilift has an 8,000 pound capacity with specially engineered pads that pivot in all directions to accommodate a sloped surface. Its new design has more travel than its predecessor, handling up to a five-inch variance in the width of the objects to be lifted without needing to adjust the legs. And when you do need to adjust the legs, it only takes the simple flip of a lever. The ML8K10T48V1 grips from the outside squeezing in widths from 10 to 48 inches. The legs can be reversed and grip from 29 to 60 inches when placed in an inside pushing out fashion. (shown below)

This lifter attaches with Kenco’s recommended Rigmax to any lifting capable machine.

See the chart below for specifications.

Uses a Medium Actuator and 8″ round pads.

ML8k10T68V1 Multilift

The ML8K10T68V1 Multilift has an 8,000 pound capacity with specially engineered pads that pivot in all directions to accommodate a sloped surface. The ML8K10T68V1 easily adjusts with the use of a lever and can grip from the outside pushing in from 10 to 68 inches. The legs can be reversed to grip from 29 to 80 inches when placed in an inside pushing out orientation. (shown below)

This lifter attaches with Kenco’s recommended Rigmax to any lifting capable machine.

See the chart below for specifications.

Uses a Medium Actuator and 8″ round pads.

ML12K14T88V1

ML12K14T88V1 Multilift

The ML12K14T88V1 Multilift has an 12,000 pound capacity with specially engineered pads that pivot in all directions to accommodate a sloped surface. This lifting grab easily adjusts with the use of a lever and can grip from the outside pushing in from 14 to 88 inches. The legs can be reversed to grip from 38 to 112 inches when placed in an inside pushing out orientation.

This lifter attaches with Kenco’s recommended Rigmax to any lifting capable machine.

See the chart below for specifications.

Uses a Large Actuator and 10″ round pads.

OTHER VARIATIONS AVAILABLE FOR THE MULTILIFT

MULTLIFT SPECIFICATIONS by model

MODEL WEIGHT CAPACITY GRIP RANGEINSIDE – OUT GRIP RANGE
ML3K5T32V3140 lbs
63.50 kg
3000 lbs
1360.777 kg
5 – 32 inches
12.7 – 81.28 cm
18 – 41 inches
45.72 – 104.14 cm
ML8K10T48V1470 lbs
213.188 kg
8000 lbs
3628.739 kg
10 – 48 inches
25.4 – 121.92 cm
29 – 60 inches 73.66 – 152.4 cm
ML8K10T68V1530 lbs
240.404 kg
8000 lbs
3628.739 kg
10 – 68 inches
25.4 – 172.72 cm
29 – 80 inches 73.66 – 203.2 cm
ML12K14T88V11230 lbs
557.9 kg
12,000 lbs
5443.108 kg
14 – 88 inches
35.6 – 223.5 cm
38 – 112 inches
96.5 – 284.4 cm

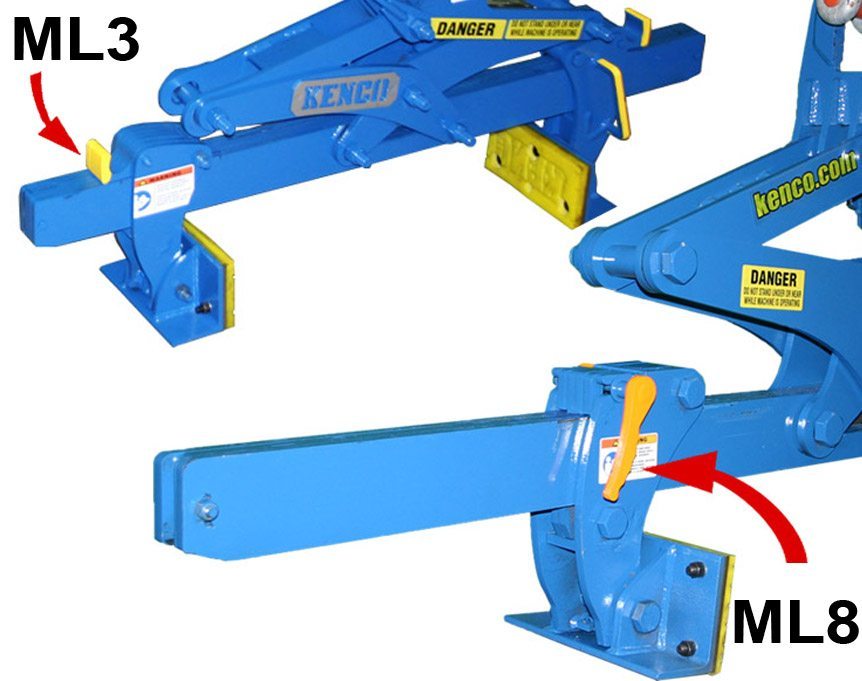

Multilift Leg ADJUSTMENTs

One of the most noticeable features found on this new version of the Multilift concrete slab lifting device is the ease of changing width adjustment.

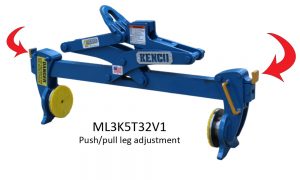

The ML3 model has an effortless slide lock for making width adjustments. A pull back releases it, and a push back into position locks it once again.

Click arrows to view procedure

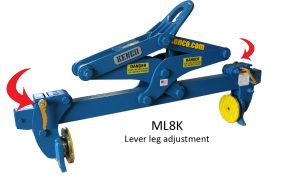

On the ML8 models, just flip a lever to unlock each leg and allow it to slide freely along the shaft of the lifter. Once the legs are in the preferred position, the lever is simply flipped once again. This locks the legs and readies it for the next lifting cycle.

AVAILABLE OPTIONS

The highly adaptable design of the Multilift can be configured to grab unusual shapes also. By providing our engineers with a specification drawing or even the object itself, custom legs can be devised or additional features conceived such as with the optional stand-offs.

STAND-OFFS

EXTENDED LEGS

CUSTOM LEGS

For specialized requirements, the legs of the Multilift can be customized for a specific object that is moved frequently on the job site.

ML with round legs
