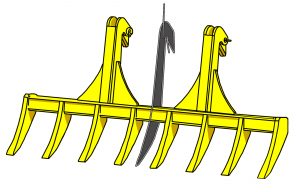

Standard Moldboard Rake – Installed
The Kenco Standard Moldboard Rake is installed using two brackets welded to the existing blade. There are quick removal pins for ease of installation or removal when not in use. These same pins can be positioned to achieve more penetration of the soil. This Kenco dozer rake retains the original function of your blade while gaining the ability to clear stumps, roots and other obstructions. The moldbard rake is for use on straight blades only.
SPECIFICATIONS:
- A400 steel tines
- Available Sizes: 96″, 118″, 120″, and 144″ widths
- Quick turnaround time
- Easy installation and quick removal
FEATURES AND BENEFITS:
- Various widths to match machine size from D3 to D8 Dozers
- The tine design of this forest rake machine allows for minimum ground clearance
- Varying penetration depths on each rake widths
- Turns your dozer’s straight blade into a root and brush clearing tool

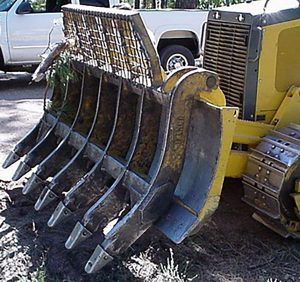

Extreme Service Moldboard Rake
The Kenco Extreme Service Clip-On Moldboard Rake is installed to the existing blade. The tines of the Extreme Moldboard extend to the entire height of the blade. Each is built to your specific machine’s blade and retains the original function of the blade while gaining the ability to clear brush and debris efficiently. A brush guard is also available for dozer root rakes. Call 800-653-6069 for more information on other Kenco lifting products and Request a Quote.
SPECIFICATIONS:
- T-100 (A-514) steel tines
FEATURES AND BENEFITS:
- Multi-tine design with curved profile to promote brush collection
- Increase machine utilization over manual labor
- Optional brush guard
- Extended tine height
- Replaceable teeth
- Each Extreme Service Moldboard Rake is built specific to your machine

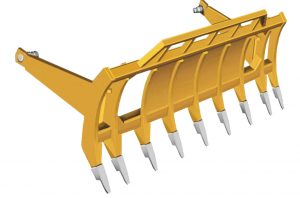

C Frame Mount Brush Rake
Dozer Brush Rake – Direct Attach Style
The Kenco C Frame Mount Brush Dozer Rakes for sale are designed for heavy duty land clearing operations. They are used to pile brush and debris, leaving the soil and dirt behind to permit clean burn and cleanup. The multi-tine design installs in place of the dozer blade on the C-frame and works like a rake by gathering loose roots, stumps, brush, etc. and allowing the soil and dirt to pass through it.
Call Kenco 800-653-6069 for more information or Request a Quote.
STANDARD SPECIFICATIONS:
- T-100 (A-514) steel tines
- Replaceable teeth tips
- C-frame hook-up
FEATURES AND BENEFITS:
- Multi-tine design with a curved profile to promote brush collection
- Replaces blade with C-frame hook-up design
- Various widths to match machine size and application
- Piles brush without retaining soil for clean brush pile burning
- Increases machine utilization over manual labor
- Each C Frame Mount Brush Rake is built custom to your machine
