COMPARE DOZER RAKE MODELS

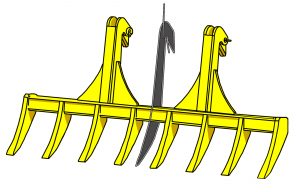

Standard Moldboard Rake

Standard Moldboard Rake – Installed

The Kenco Moldboard Rake is installed using two brackets welded to the existing blade. There are quick removal pins for ease of installation or removal when not in use.  These same pins can be positioned to achieve more penetration of the soil. The rake retains the original function of your blade while gaining the ability to clear stumps, roots and other obstructions. Call Kenco 800-653-6069 for more information or Request a Quote.

SPECIFICATIONS:

  • A400 steel tines
  • Available Sizes: 96″, 108″, 120″, and 144″ widths
  • Quick turnaround time

FEATURES AND BENEFITS:

  • Various widths to match machine size from D3 to D8 Dozers
  • Tine design allows for minimum ground clearance
  • Varying penetration depths on each rake widths

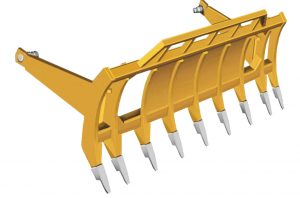

Extreme Service Moldboard Rake

The Kenco Extreme Service Clip-On Moldboard Rake is installed to the existing blade. The tines of the Extreme Moldboard extend to the entire height of the blade.  Each is built to your specific machine’s blade and retains the original function of the blade while gaining the ability to clear brush and debris efficiently. A brush guard is also available.

Call Kenco 800-653-6069 for more information or Request a Quote.

SPECIFICATIONS:

  • T-100 (A-514) steel tines

FEATURES AND BENEFITS:

  • Multi-tine design with curved profile to promote brush collection
  • Increase machine utilization over manual labor
  • Optional brush guard
  • Extended tine height
  • Replaceable teeth
  • Each Extreme Service Moldboard Rake is built specific to your machine

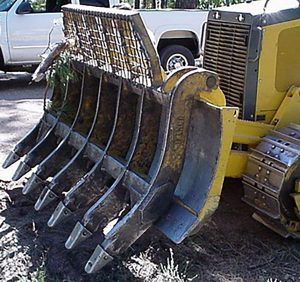

C Frame Mount Brush Rake

Dozer Brush Rake – Direct Attach Style

Kenco C Frame Mount Brush Rake is designed for heavy duty land clearing operations. They are used to pile brush and debris, leaving the soil and dirt behind to permit clean burn and cleanup. The multi-tine design installs in place of the dozer blade on the C-frame and works like a rake by gathering loose roots, stumps, brush, etc. and allowing the soil and dirt to pass through it.

Call Kenco 800-653-6069 for more information or Request a Quote.

STANDARD SPECIFICATIONS:

  • T-100 (A-514) steel tines
  • Replaceable teeth tips
  • C-frame hook-up

FEATURES AND BENEFITS:

  • Multi-tine design with a curved profile to promote brush collection
  • Replaces blade with C-frame hook-up design
  • Various widths to match machine size and application
  • Piles brush without retaining soil for clean brush pile burning
  • Increases machine utilization over manual labor
  • Each C Frame Mount Brush Rake is built custom to your machine
