Standard 6″ to 12″ Grip Ranges

KL9000 BARRIER LIFT

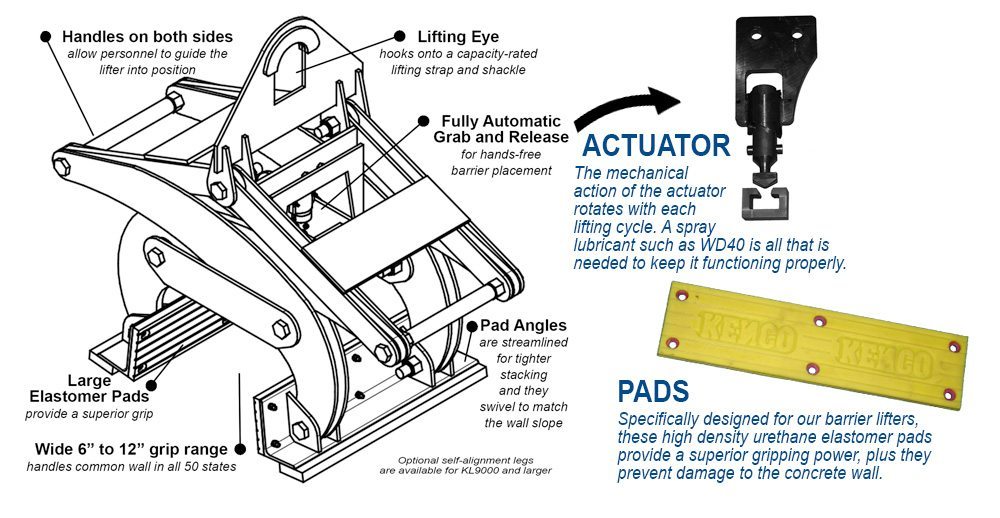

The KL9000 Kenco Barrier Lift will handle up to 16 foot jersey wall easily.

It has a 6″ to 12″ grip range and a 9000 pound capacity.

Kenco KL12000 Barrier Lift

KL12000 BARRIER LIFT

The KL12000 Kenco Barrier Lift will handle 16 – 20 foot jersey wall easily.

It has a 6″ to 12″ grip range and a 12,000 pound capacity.

KL16000 BARRIER LIFT

The KL16000 Kenco Barrier Lift will handle 20 – 30 foot jersey wall.

It has a 4″ to 12″ grip range and a 16,000 pound capacity.

KL16KNG8T18 BARRIER LIFT

The KL16KNG8T18 Barrier Lift will handle 20 – 30 foot lengths of jersey wall.

It has a 8″ to 18″ grip range and a 16,000 pound capacity.

Kenco KL30000 Barrier Lift

KL30000 BARRIER LIFT

The KL30000 Kenco Barrier Lift will handle 20 – 40 foot lengths of jersey wall.

It has a 6″ to 12″ grip range and a 30,000 pound capacity.

Kenco KL40000 Barrier Lift

KL40000 BARRIER LIFT

The KL40000 Kenco Barrier Lift will handle 20 – 40 foot lengths of jersey wall easily.

It has a 6″ to 12″ grip range and a 40,000 pound capacity.

ADD-ON: RIGMAX KIT

The RigMax Kit is the recommended rigging setup for connecting your Kenco lifter to your machine. It is available in either a 16,800 LB capacity or 31,700 LB capacity.

Connect your lifter with the Rigmax.

ADD-ON: ALIGNMENT LEG

This add-on attaches to one side of the Barrier Lifter and allows the machine operator to lower the lifter onto the wall without need for a ground assistant. Easy to install.

Click here to watch a demonstration

Low Profile Wall – State-Specific Grip Ranges

KL9K12T18FLL BARRIER LIFT

FLORIDA LOW PROFILE BARRIER LIFT

This lifter was designed specifically for Florida Low Profile Wall unique to Florida. It has a capacity of 9,000 lbs and a grip range of 12″ to 18″.

Kenco KL12000TLP Barrier Lift

KL12000TLP BARRIER LIFT

TEXAS LOW PROFILE BARRIER LIFT

The KL12000TLP Barrier Lift has a 28 inch grip range that was designed to handle the unique Texas Low Profile Barrier Wall exclusive to the Lone Star state.

Single Purpose / Multiple Wall Lifters

KL6KTWALL56 & KL6KTWALL84

LONG WALL / ZIPPER WALL LIFT / TEMPORARY MOVABLE WALL LIFT

This lifter was designed for zipper-style, movable barrier wall. It is available in 2 lengths of 56″ and 84″ to pick multiple zipper wall pieces at one time with a capacity of 6,000 pounds.

KLDL14K8T9

DOUBLE BARRIER LIFT / DUAL BARRIER WALL LIFT

Kenco Engineers can design a custom lifter to meet specific requests such as with this lifter – the Double Barrier Lift. The final product allowed for the safe moving of 2 walls up to a maximum capacity of 14,000 pounds with a grip range of 8″ to 9″. Due to very specific criteria required to maintain a safe grip, each Double Barrier Lifter is custom designed for your specific wall.

Email your wall spec to sales@kenco.com or click here for more details.

Specifications

MODELWEIGHTCAPACITY GRIP RANGE USAGE
KL9000600 Pounds
272.155 kg
9000 Pounds
4082.331 kg
6-12 Inches
15.24 – 30.48 cm
10′-16′ Concrete Barrier Wall
3.048 – 4.876 m
KL9K12T18FLL555 Pounds 249.48 kg9000 Pounds 4082.331 kg12-18 Inches 30.48 – 48.26 cmFlorida Low Profile Wall
KL12000800 Pounds
362.87 kg
12000 Pounds
5443.108 kg
6-12 Inches
15.24 – 30.48 cm
16′-20′ Concrete Barrier Wall
4.876 – 6.096 m
KL12000TLP850 Pounds
385.55 kg
12000 Pounds
5443.108 kg
28 Inches
71.12 cm
Texas Low Profile Wall
KL16K4T12V4750 Pounds
340.19 kg
16000 Pounds
7257.477 kg
4-12 Inches
15.24 – 30.48 cm
20′-30′ Concrete Barrier Wall
6.069 – 9.144 m
KL16K8T18800 Pounds
362.87 kg
16000 Pounds
7257.477 kg
8-18 inches
20.32 – 45.72 cm
20′-30′ Concrete Barrier Wall
6.069 – 9.144 m
KL300001050 Pounds
476.27 kg
30000 Pounds
13607.772 kg
6-12 Inches
15.24 – 30.48 cm
30′-40′ Concrete Barrier Wall
9.144 – 12.192 m
KL400001850 Pounds
839.14 kg
40000 Pounds
18143.696 kg
6-12 Inches
15.24 – 30.48 cm
30′-40′ Concrete Barrier Wall
9.144 – 12.192 m
