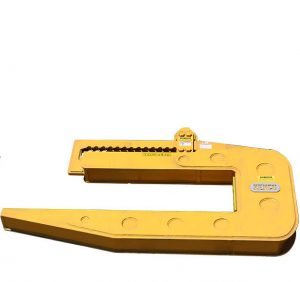

MECHANICAL PIPE HOOK

Mechanical Pipe Hook is identified by the manual slide adjustment located across the top of the hook.

MODELS AVAILABLE

PH9000 – 9,000 pound cap
PH12000 – 12,000 pound cap
PH18000 – 18,000 pound cap
PH30000 – 30,000 pound cap
PH60000 – 60,000 pound cap

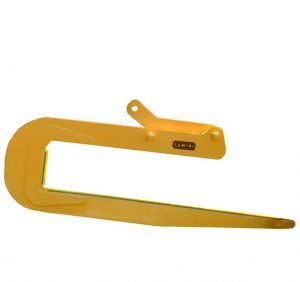

SELF LEVELING PIPE HOOK

Self leveling Pipe Hook models are identified by the swing arm located at the top of the hook. It automatically levels the pipe as it is raised.

MODELS AVAILABLE

PH3500SB – 3,500 pound cap

PH9000SB – 9,000 pound cap

NEW!

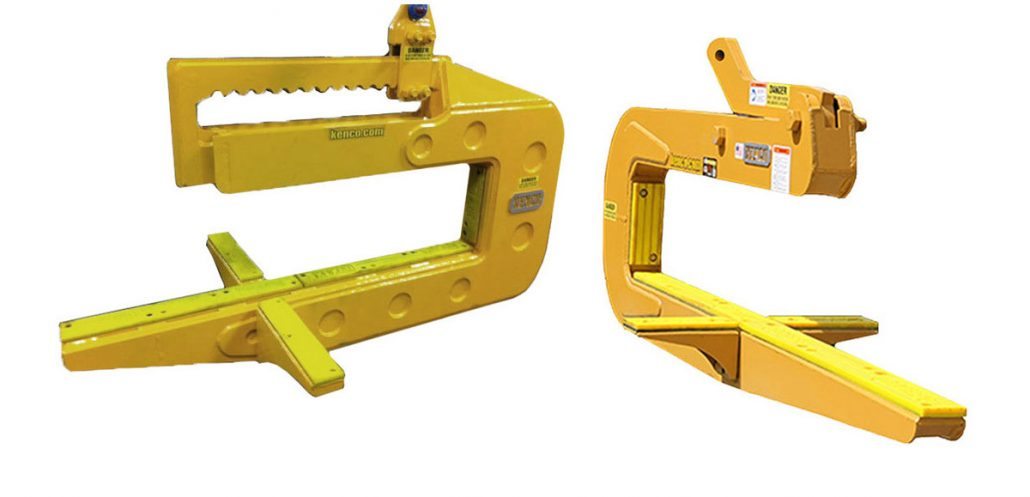

Detachable wings to handle Culvert Box

All Pipe Hook models are available with optional outriggers to lift objects such as box culvert.

SELF BALANCING HOOKS ARE AVAILABLE IN THESE MODELS

MODELCAPACITYMINIMUM PIPE OPENINGMAXIMUM PIPE OPENINGUNIT WEIGHTPAD SIZE/QTY
PH3500SB3,500 pound capacity10 inches 36 inches450 lbs(2) BASE PADS – 4″ x 36″

(1) BACK FACE – 4″ x 10″

PH9000SB9,000 pound capacity12 inches 48 inches550 lbs(2) BASE PADS -4″ x 36″

(1) BACK FACE – 4″ x 10″

MECHANICAL HOOKS ARE AVAILABLE IN THESE MODELS

MODELCAPACITYMINIMUM PIPE OPENINGMAXIMUM PIPE OPENINGPAD SIZE/QTYUNIT WEIGHT
PH90009,000 pound capacity12 inches48 inches(2) 4″ x 36″

(1) 4″ x 10″

550 lbs
PH1200012,000 pound capacity18 inches 60 inches(2) 4″ x 36″

(1) 4″ x 13″

920 lbs
PH180018,000 pound capacity24 inches72 inches0(2) 4″ x 36″

(1) 4″ x 13″

1120 lbs
PH3000030,000 pound capacity30 inchesNote: as long as weight of pipe is at or under specified capacity, there
is no maximum size requirement
(2) 4″ x 36″

(1) 4″ x 15″

1500 lbs
PH6000060,000 pound capacity36 inchesNote: as long as weight of pipe is at or under specified capacity, there is no maximum size requirement(4) 4″ x 36″3300 lbs

If the job involves moving different sizes and shapes of pipe, a Kenco Pipe Hook is the attachment you need.

Our standard Pipe Hook models are designed to be used on typical 8 foot pipe lengths

Pipe Hook models can be used with any shape of pipe, including elliptical

Use the Pipe Hook with any type of pipe – RCP, ductile iron, steel, or PVC

PLUS, Custom Pipe Hook models can be built to handle up to 20 foot sections of pipe
