Pipe Hook

THE ORIGINAL & OUR NEW SELF-LEVELING PIPE HOOK MODELS

The Pipe Hook was developed specifically for the utility contractor to provide a safe, efficient pipe handling attachment. The original models are operated using a sliding mechanism to obtain the balance point. The self-leveling models have a built-in mechanism that automatically adjusts to the weight of the pipe and determines the proper balance point. The Pipe Hook can be used on any shape or type of pipe.

SPECIFICATIONS Original Models

Model

Weight (lbs)

Capacity (lbs)

A (in)

B (in)

C (in)

D (in)

PH3500*
350 3500 84.5000 4.5000 13.5000 32.8750
PH9000*
700 9000 89.000 4.7500 15.1875 49.1875
PH12000
920 12000 89.000 6.0000 15.1875 49.1875
PH18000
1120 18000 89.000 6.0000 15.1875 49.1875
PH30000
1500 30000 92.2500 6.0000 17.4375 58.3125

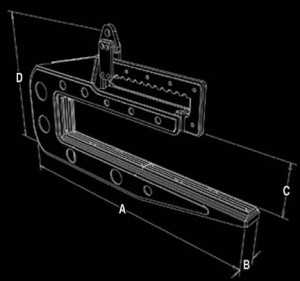

*Also available in our self-leveling model Use the diagram below for size specifications. Larger custom sizes and capacities are also available.
pdfbutton

PHOTOS

Click to Enlarge

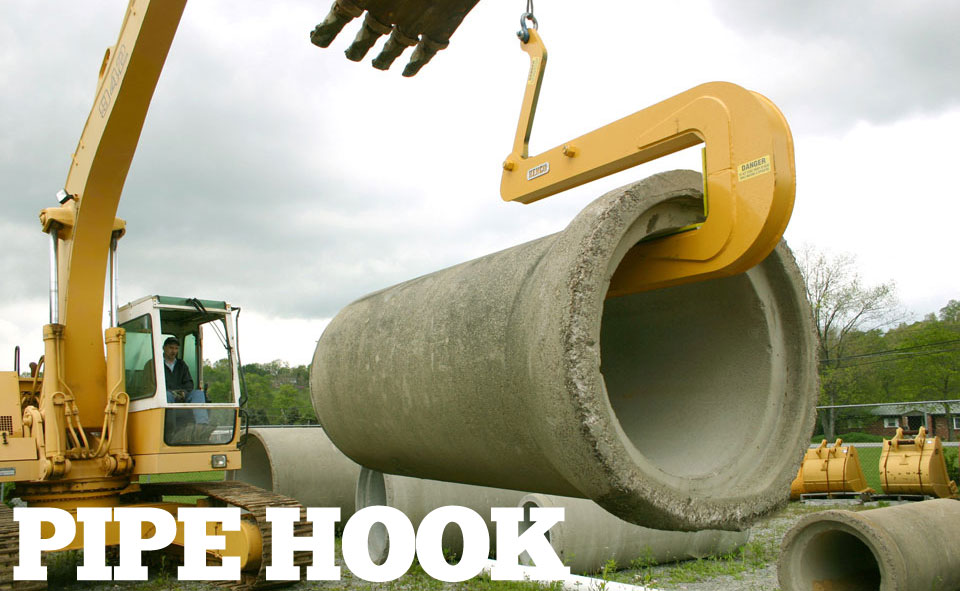

Lift… Move…Place…Set… in one continuous motion

Kenco Pipe Hook original series models are available in capacities up to 30,000 pounds, with custom larger sizes available for production. The Pipe Hook is designed with a unique slide mechanism that allows the operator to pick the balance point for various loads. It can be used on ANY shape or type of pipe. Self-leveling models are available up to 9000 pound capacities. The self-leveling mechanism is housed inside the body of the hook. Like the original, it can be used on ANY shape or type of pipe.

Self Leveling Pipe Hook

SPECIFICATIONS Self Leveling Models

Model

Weight (lbs)

Capacity (lbs)

A (in)

B (in)

C (in)

D (in)

PH3500
350 3500 84.5000 4.5000 13.5000 32.8750
PH9000
700 9000 89.000 4.7500 15.1875 49.1875

pdfbutton

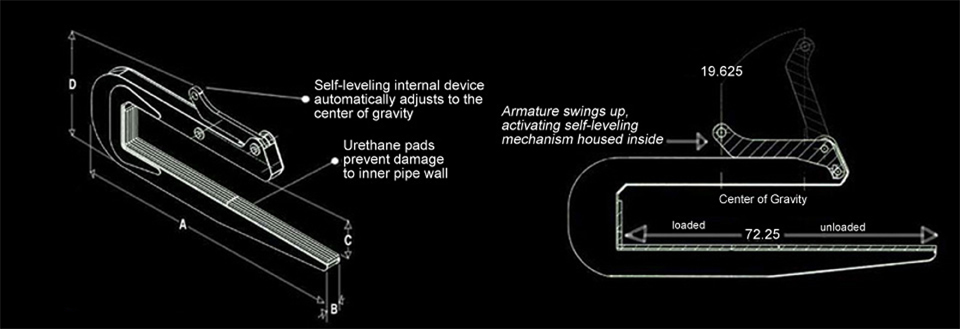

Our exclusive balancing mechanism is housed inside the hook body. The operator simply slides the hook fully into the pipe, then lifts and moves it to the destination. The weight of the pipe automatically levels itself.

Self Leveling Model of the Pipe Hook
  • Works with ALL types and shapes of pipe
  • Eliminates the need for a person in the trench
