Hardrock Grapple Compare Models

Hardrock Grapple
Hardrock Grapple Specs

GRAB AND LOAD ANY MATERIAL. HANDLE THE TOUGHEST DEMOLITION PROJECTS

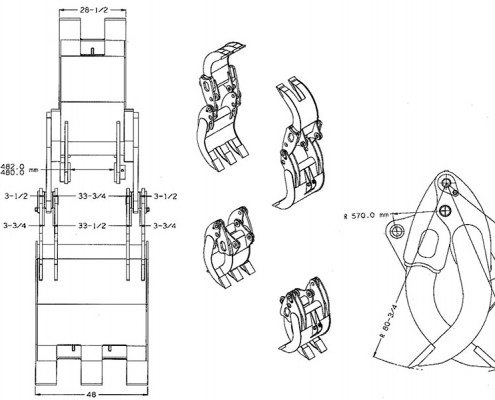

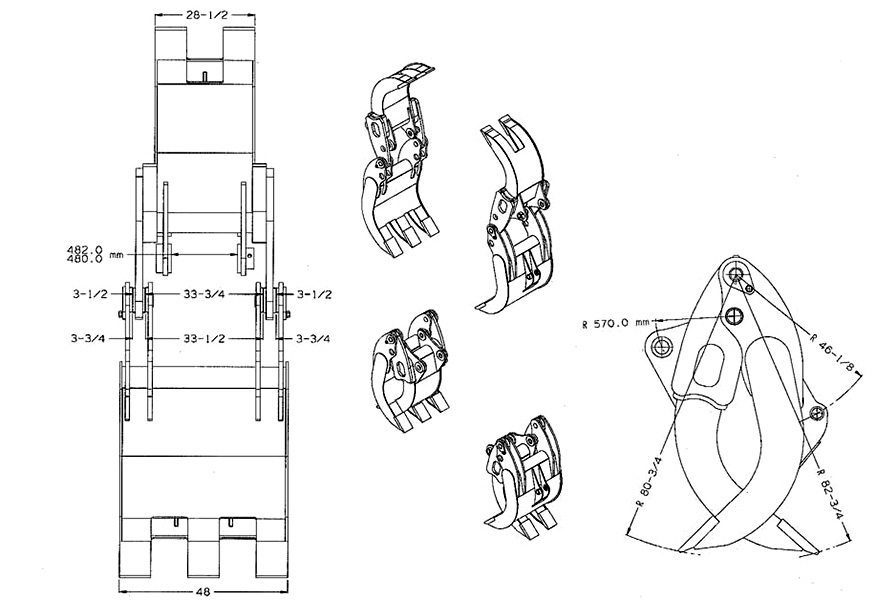

Standard 2 over 3 tine configuration, with custom configurations available upon request. The diagram above shows the dimensions to fit a Cat345 machine.

Replaceable tips extend production life of the attachment.

Specifications

Series/category
EX150 SeriesEX200 SeriesEX250 SeriesEX300 SeriesEX400 SeriesEX500 Series
Jaw OPEN90 inches105 inches105 inches117 inches133.25 inches151 inches
Jaw CLOSED8 inches10 inches10 inches10 inches15.5 inches15.5 inches
Width FRONT28 inches28 inches30 inches30 inches32 inches37 inches
Width Rear44 inches
44 inches48 inches48 inches52 inches60 inches
Height47 inches
53 inches53 inches60 inches70 inches80.625 inches
Tip Size (in)15 X 6.5 X 115 X 6.5 X 1.2515 X 7.5 X 1.5015 X 7.5 X 1.5020 X 8.25 X 2
23 X 10 X 2.5
Inner Plate1/2 inch1/2 inch5/8 inch5/8 inch5/8 inch
3/4 inch
Outer Plate3/8 inch1/2 inch1/2 inch5/8 inch5/8 inch
3/4 inch
Ext. Plate1/2 inch5/8 inch3/4 inch1 inch1 – 1/4 inch1 – 1/2 inch
Web Plate3/8 inch1/2 inch5/8 inch5/8 inch5/8 inch3/4 inch
Total Weight2000 lbs2600 lbs2900 lbs3950 lbs5420 lbs7400 lbs
